DIASI Application Suite

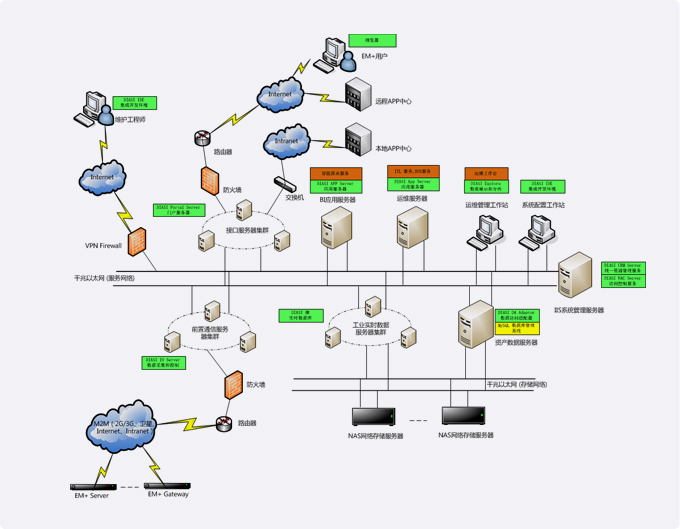

The DIASI DataCenter application suite is designed for the needs of a specific industrial IoT data center. It utilizes the data management infrastructure and basic application services provided by the DIASI platform. In response to the needs of a specific IoT data center information service, display and operation management,through the establishment of a public information model (CIM) for specific application areas, the DIASI DSB is developed through secondary development and can be used as a software platform for large and medium-sized data centers in industrial IoT applications.The figure below shows the system architecture and DIASI platform deployment for a typical IoT data center for regional energy management:
Among them:
The data center is used as front-end server for remote data collection in IoT. The DIASI IO Server is deployed to expand capacity in a cluster based on changes in the connected IoT nodes.
The data center is used as industrial real-time database for real-time information management of IoT. The DIASI dimensional real-time database management system is deployed to support the cloud storage and cluster deployment modes with strong scalability and reliability.
The data center is used as asset management server for management of IoT to deploy the DIASI asset management database management system. This is a low cost device management database system integrated with DIASI DA Adaptor combined with the open source MySQL database management system. For specific application scenarios, Oracle or other database management systems can be integrated for asset management of the IoT.
The data center is used to support the application server of intelligent analysis and operation services. It is based on DIASI DSB, integrated with ITL operation and maintenance service, business operation service (BOS) and intelligent report service.
The data center is used as an interface server to provide information access to external users. The DIASI Portal Server is deployed to provide flexible cluster deployment for changes in service application systems and user data.
The data center is used as system management server for security management and resource management. Deploying unified resource management server and system access server of DIASI platform can provide deployment management and user management of all system software resources and configuration resources needed for running data center business under distributed environment.
The data center is used as workstations for maintenance and configuration management. Deploying DIASI IDE configuration development environment and DIASI Explore tools to support local and remote configuration management and operation maintenance.
